OLED 1.3 BLUE

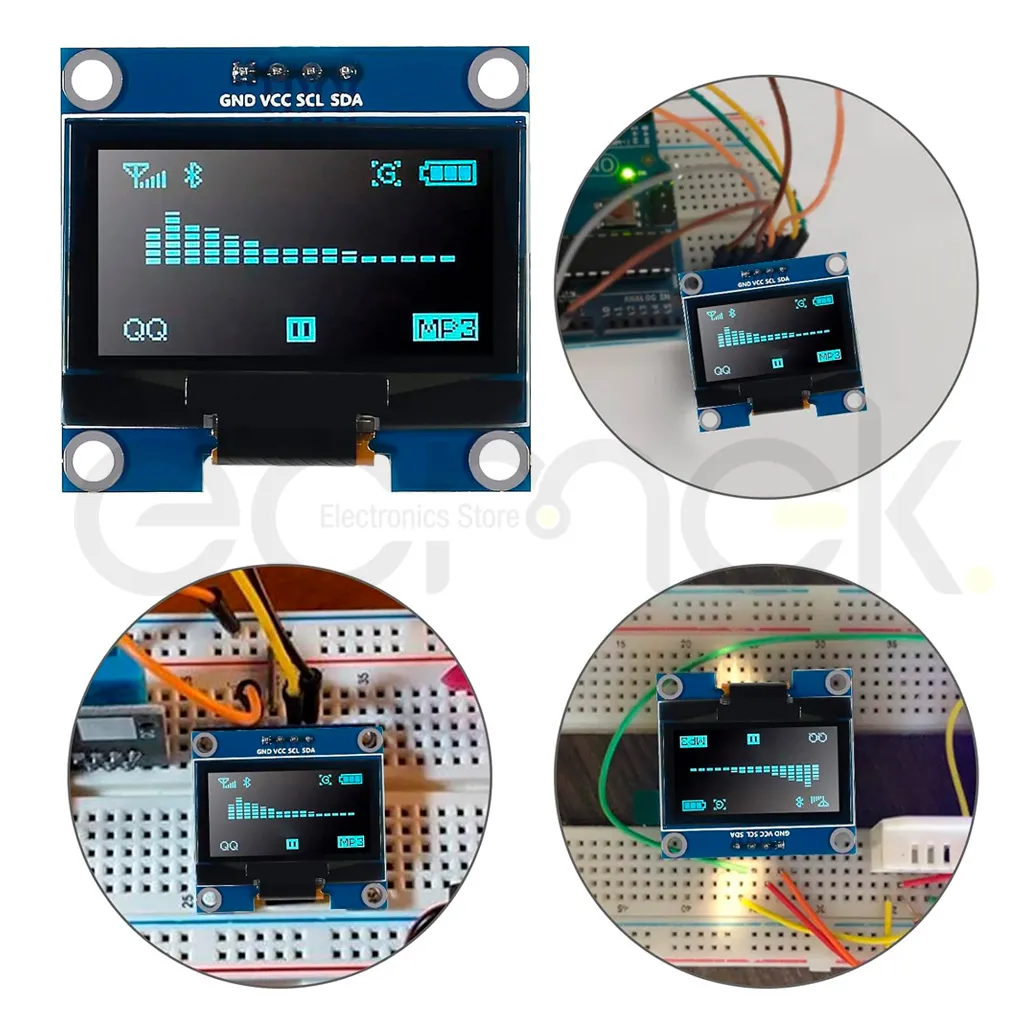

1.3 inch I2C Serial 4pin Blue OLED Display Module 128X64 Screen Board for arduino

1.Super wide viewing angle: More than 160° (a screen with the largest viewing angle in the monitor)

2.Ultra-low power consumption: Normal display 0.08W (far below the TFT display)

3.Wide voltage supply : DC 3V-5V, 3.3V and 5V level logic compatible, no level shifter IC

4.IIC interface and only requires several IOs to light up easily

5.Working temperature is industrial (-30°C~70°C)

6.Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work

7.OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

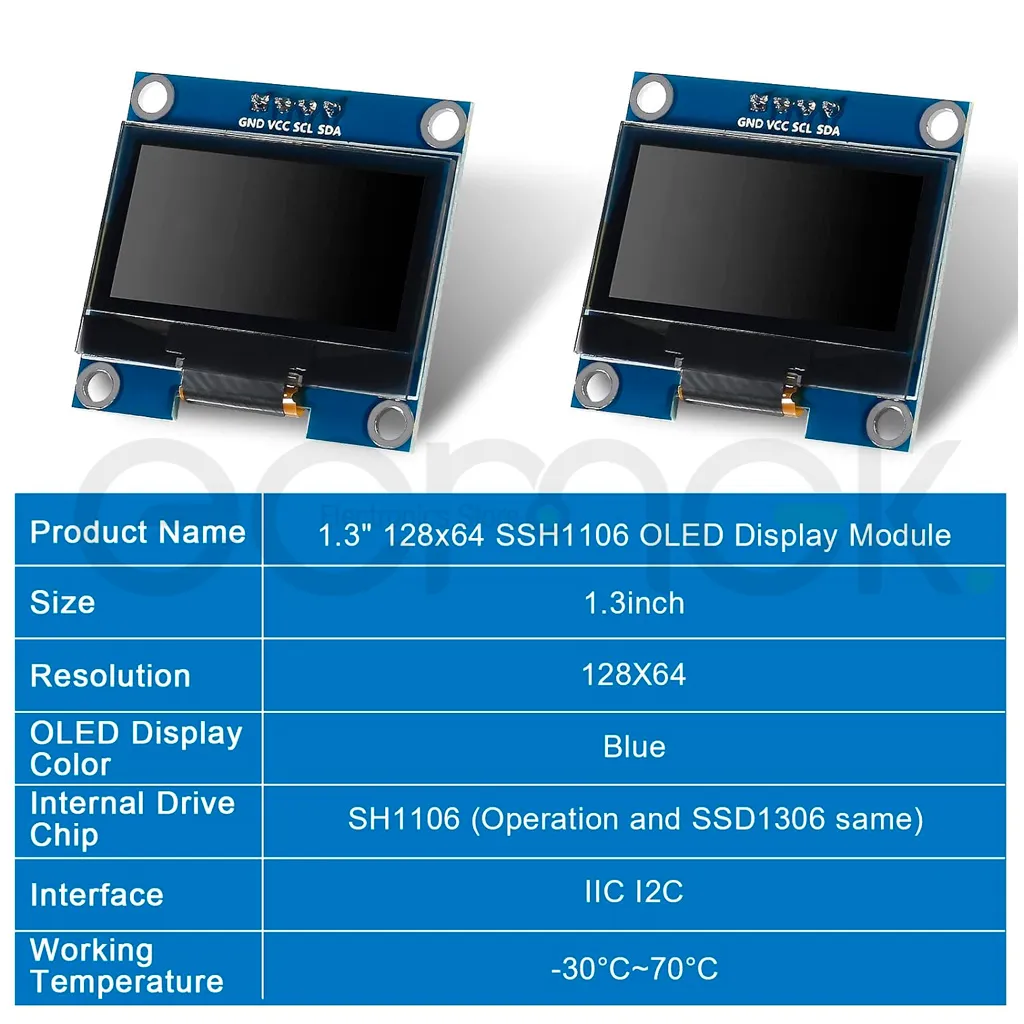

Specifications:

Product Name: 1.3" OLED LCD Display Module IIC I2C Serial

Display Color: Blue/White

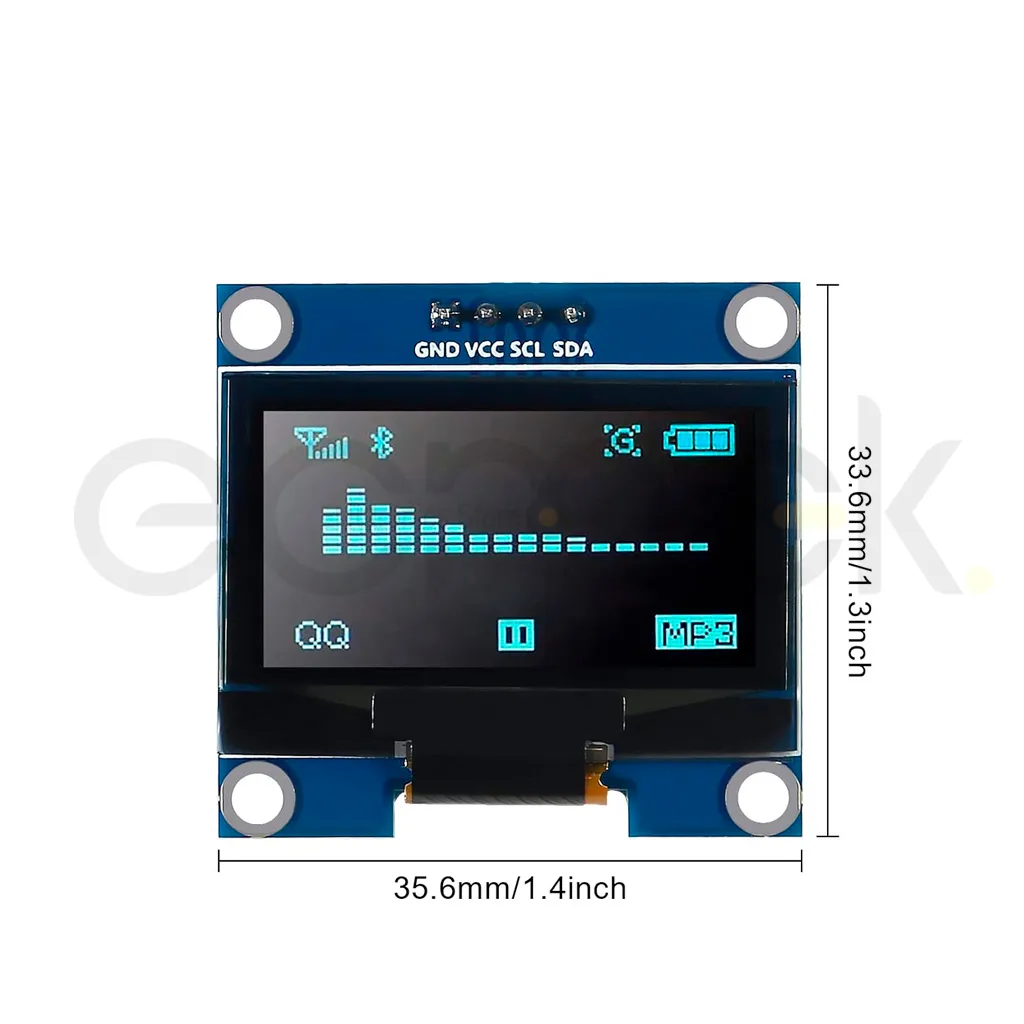

Size: 35.6x33.6mm/1.4x1.3in

Driver Chip: SH1106

Rresolution: 128*64 (Pixel)

Module Interface: IIC Interface

IIC Pin Definition:

GND: Power Ground

VCC: Power + (DC 3.3 ~5v)

SCL: Clock Line

SDA: Data Line
