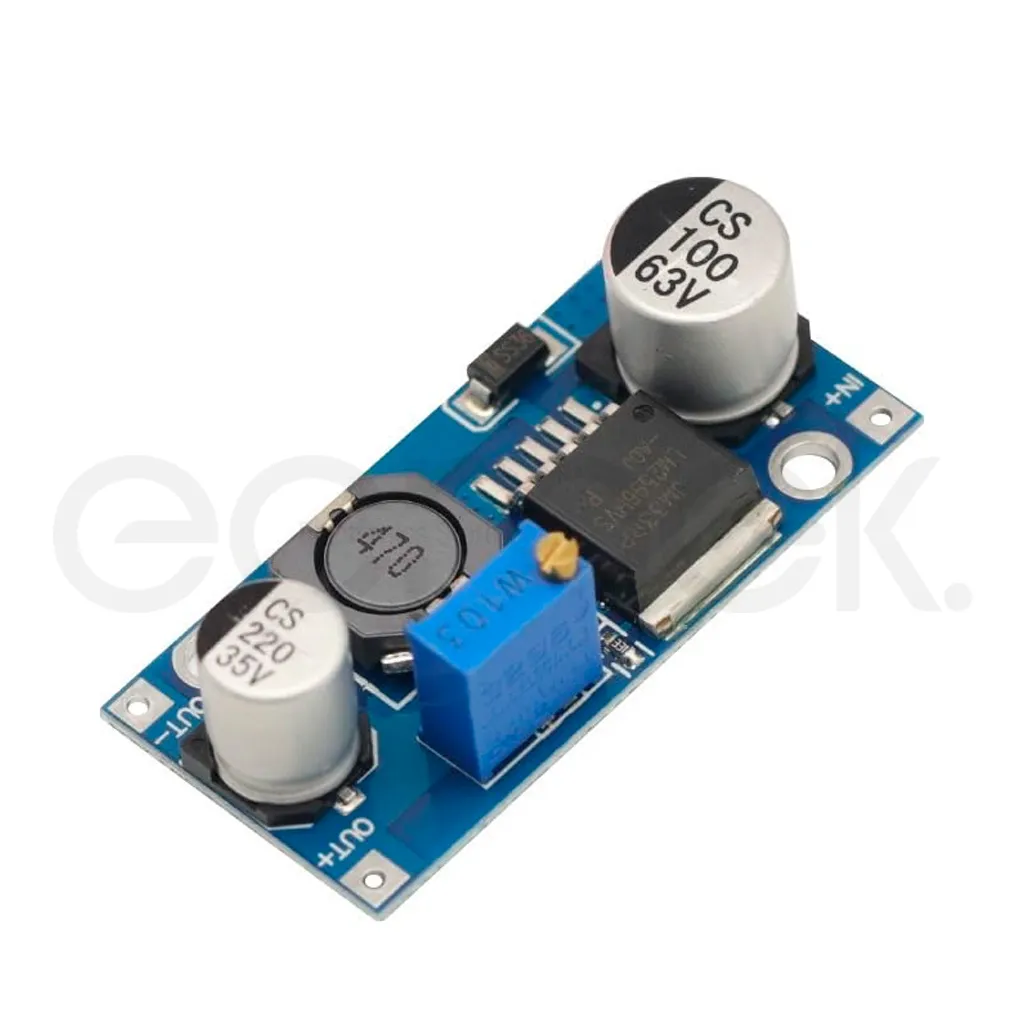

STEPDOWN LM2596HVS

STEPDOWN LM2596HVS

(0 review)

LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module Input:4.5V-50V Out:4.5V to 40V 3A

Product description

It's LM2596HVS Not LM2596S Chip,please know it

Type /name:LM2596HVS DC-DC step-down module

Input Voltage:4.5V ~ 53V

Output Voltage:3V ~ 40V

Output Current:3A (max)

Conversion efficiency:92%(the highest)

Output Ripple:<30mV

Switching frequency:150KHz

Operating Temperature:-45 ° ~ +85 °

Size:43mm * 21mm * 14mm (L * W* H)IN-IN + inputPositiveInput Negative!

Positive outputOUT +OUT-output negative

Input voltage range: DC4.5V to53V (inputvoltagemust be greater thanthe outputvoltageto1.5Vor morehigh.Could notboost)

Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.

Measured12V input, 5Voutputcurrent is 1Aload regulationrate of less than1%

Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.

Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.

750.00 DA 750.00 DA
