MB-102 Breadboard 830 Tie Point
MB-102 Breadboard 830 Tie Point Solderless PCB Board
- CAPACITY: Features 830 solder-less connection points for comprehensive circuit design and experimentation

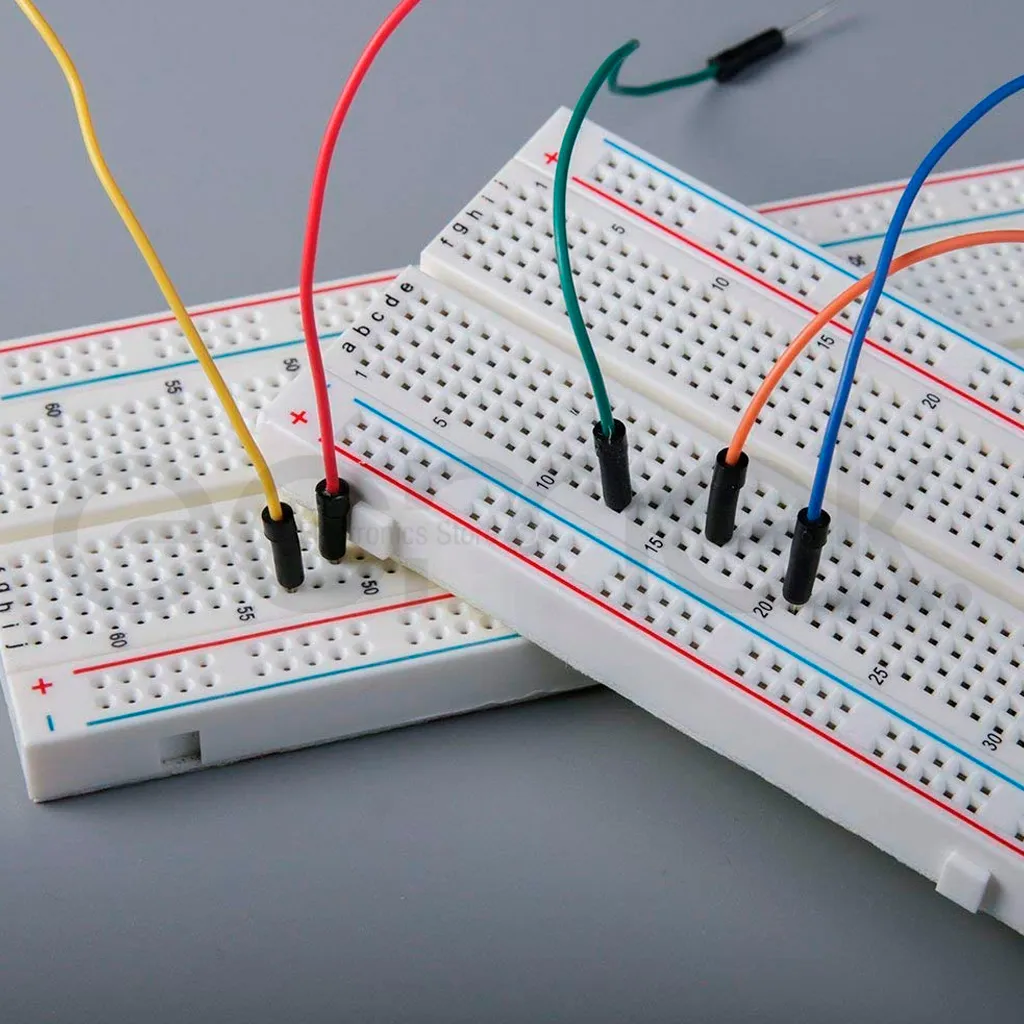

- COMPATIBILITY: Accommodates various electronic components including resistors, diodes, transistors, LEDs and capacitors
- ORGANISATION: Coloured coordinates system enables quick and precise component placement during assembly
- DESIGN FEATURES: Durable white ABS construction with clear component markings and standardised 2.54mm pitch spacing
- LABORATORY GRADE: Perfect for educational labs, prototyping, and testing electronic circuits without soldering
Specification:
Material: High quality ABS plastic
Internal Contacts Material: Phosphor bronze finished.
Board Base: Self-Adhesive Tape
830 tie points total: 200 in 2 power rails, 630 in a 30 x 10 matrix
Socket Pitch: 2.54mm / 0.1"
Contact Type: Double leaf copper spring
Extension Clips: Yes (Can extend with other boards)
Dimension: 16.4cm x 5.2 cm x 0.9 cm
Input voltage: 6.5-12V (DC) or USB power supply
Output voltage: 3.3V/5V switchable
Maximum output current: <700 mA
Two roads are of independent control and can be switched to 0V, 3.3V or 5V.
550.00 DA
