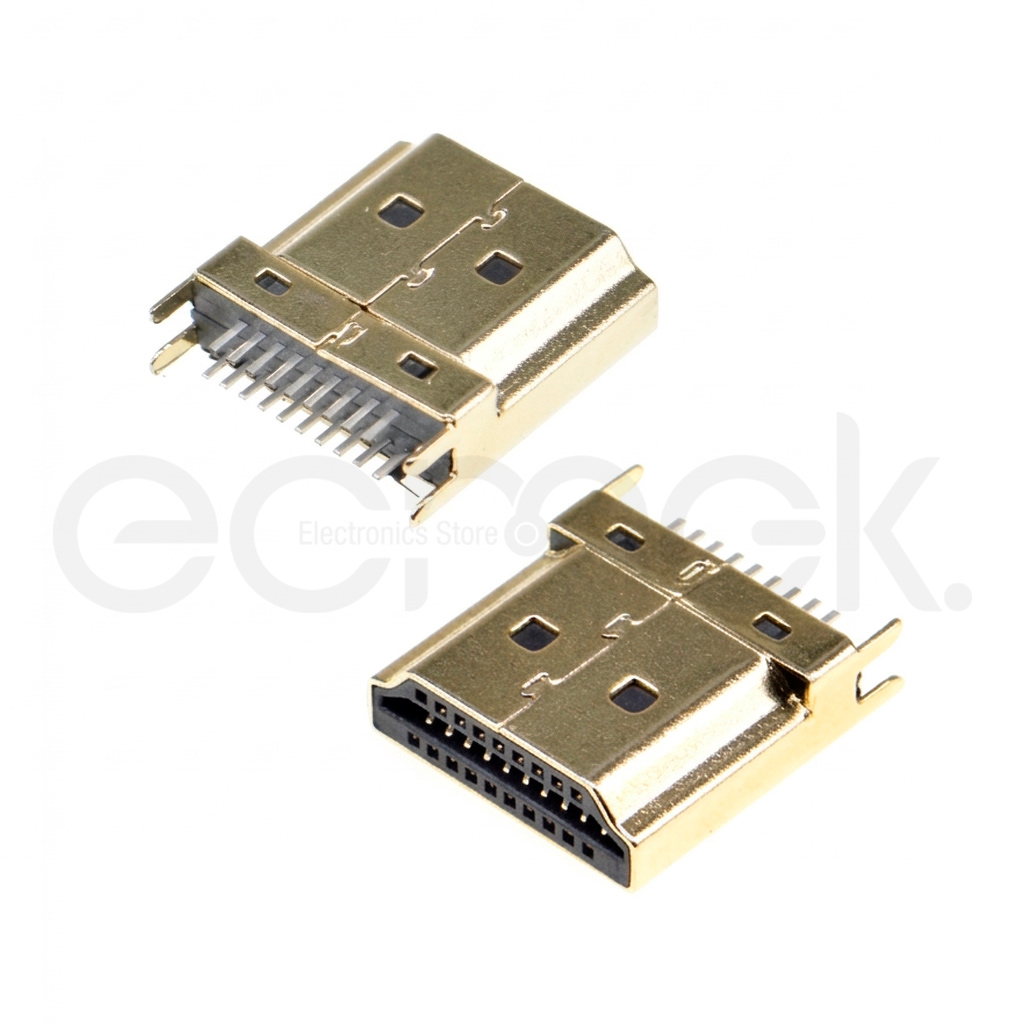

HDMI 07 Male Connector 180 Degree
Product Description
This 19-pin Vertical HDMI Male Connector is a high-grade surface-mount/through-hole PCB connector designed for custom cable assemblies, board-to-board interconnects, and repair applications. Featuring a 180-degree (straight) mounting orientation and full gold-plated contacts, it delivers superior signal conductivity, minimal impedance, and long-term protection against oxidation and corrosion.
Its durable metal shielding shell provides excellent EMI/RFI interference suppression, making it ideal for high-definition video output, diagnostic testing jigs, host interface boards, and DIY hardware projects requiring reliable HDMI signal transmission.

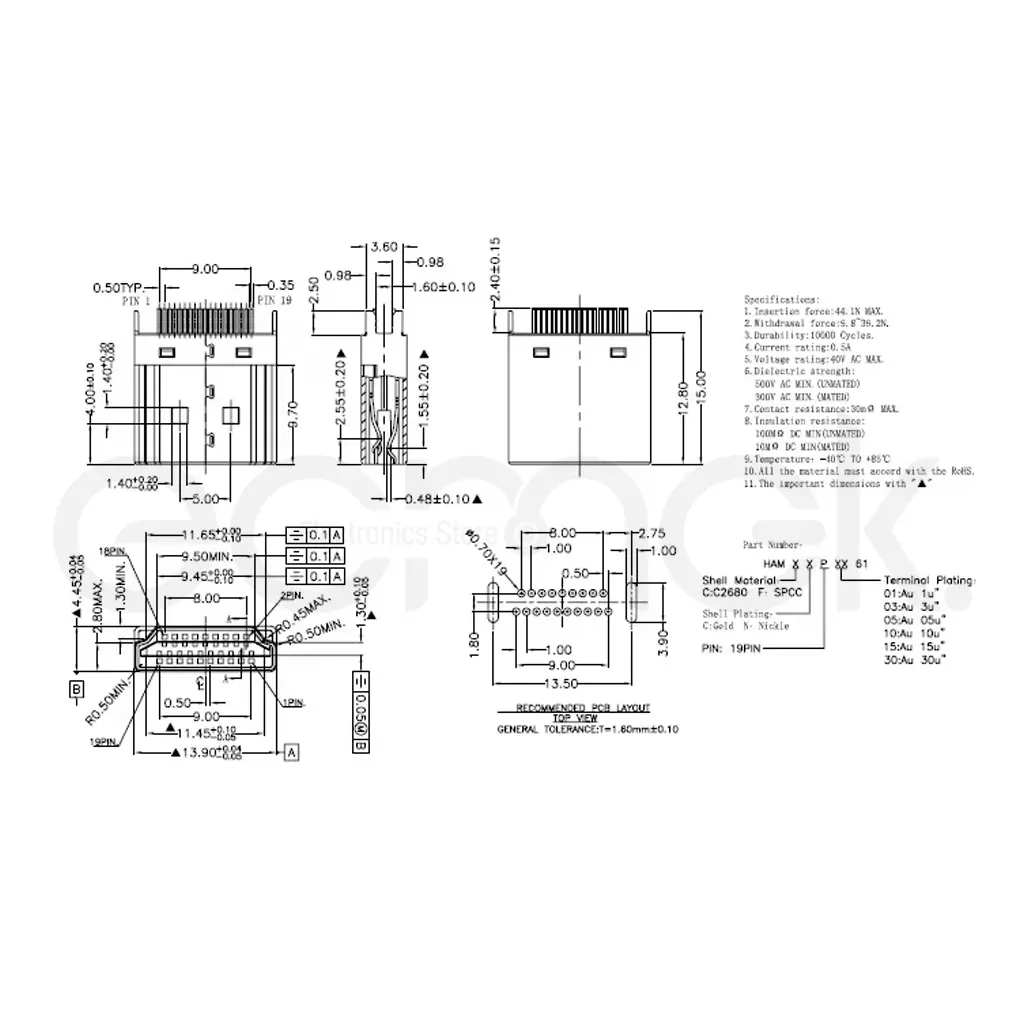

Technical Specifications
| Parameter | Specification |
| Connector Type | Standard HDMI Type-A (Male Plug / Jack) |
| Pin Count | 19 Pins |
| Orientation | 180-Degree Straight (Vertical Mount) |
| PCB Board Thickness Compatibility | 1.6 mm |
| Contact Plating | Gold-Plated (Signal Pins & Shell Options) |
| Housing Material | High-Temperature Thermoplastic (LCP/PBT, UL94V-0) |
| Shell Material | Copper Alloy / Brass (Gold or Nickel-Plated) |
| Current Rating | 0.5A per pin |
| Voltage Rating | 40V AC (RMS) |
| Contact Resistance | $\le 30\text{ m}\Omega$ |
| Insulation Resistance | $\ge 100\text{ M}\Omega$ at 500V DC |
| Dielectric Withstanding Voltage | 500V AC for 1 minute |
| Operating Temperature Range | $-20^\circ\text{C}$ to $+85^\circ\text{C}$ |
| Durability Rating | 10,000+ Mating Cycles |
Key Features
Gold-Plated Contacts: Low contact resistance and enhanced protection against tarnishing for high-frequency HD signal integrity.
Vertical 180° Form Factor: Allows upright PCB mounting, minimizing horizontal footprint on compact boards.
Full Metal Shielding: Protects against electromagnetic interference (EMI) and provides structural strain relief.
Standard 1.6mm Fit: Tailored for standard 1.6 mm thick FR-4 circuit boards for straightforward alignment and soldering.
Applications
Custom HDMI video adapter boards and breakout modules.
Repair and replacement for broken HDMI connectors on host devices and embedded hardware.
Industrial display controller cards and FPGA video output interfaces.
