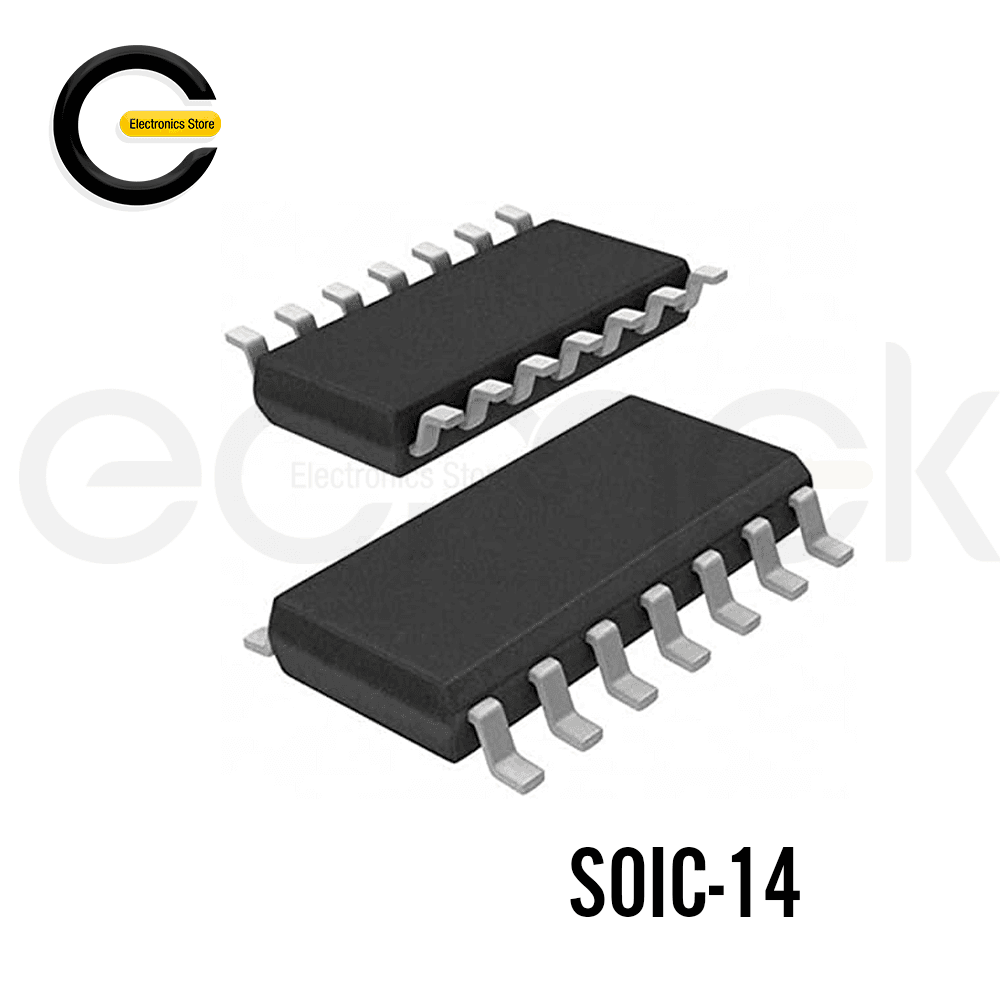

LM324DT SMD SOIC-14
Operational Amplifiers - Op Amps 3-32V Quad 5mV SOIC-14
| Manufacturer: | STMicroelectronics | |
| Product Category: | Operational Amplifiers - Op Amps | |
| Number of Channels: | 4 Channel | |
| GBP - Gain Bandwidth Product: | 1.3 MHz | |
| SR - Slew Rate: | 400 mV/us | |
| Vos - Input Offset Voltage: | 7 mV | |
| Ib - Input Bias Current: | 100 nA | |
| Supply Voltage - Max: | 15 V, 30 V | |
| Supply Voltage - Min: | 1.5 V, 3 V | |
| Operating Supply Current: | 1.5 mA | |
| Output Current per Channel: | 40 mA | |
| CMRR - Common Mode Rejection Ratio: | 80 dB | |
| en - Input Voltage Noise Density: | 40 nV/sqrt Hz | |
| Package/Case: | SOIC-14 | |
| Mounting Style: | SMD/SMT | |
| Shutdown: | No Shutdown | |
| Minimum Operating Temperature: | 0 C | |
| Maximum Operating Temperature: | + 70 C | |
| Packaging: | Reel | |
| Packaging: | Cut Tape |
100.00 DA
100.00 DA
Datasheet
