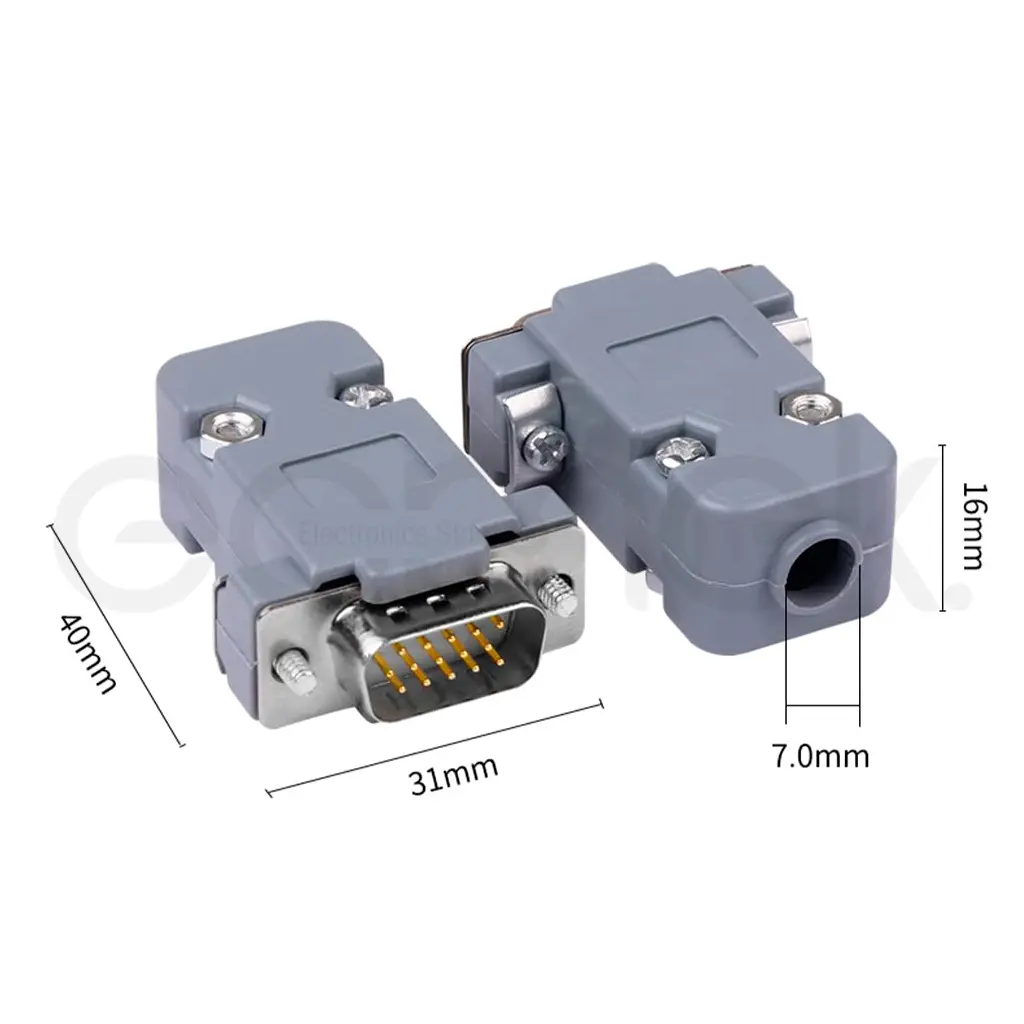

DB15F VGA D-SUB Connector

Product Description

These VGA DB15 connectors conform to commercial industry standards and will mate with any opposite gender DB15 contact. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.

Technical Specifications:

Name: VGA DB15 solder module

Rated current: 24V

Rated voltage: 2A

Cable Specification: 0.5mm2 / 20 AWG(It is not recommended to use wires larger than 20AWG.)

Body Orientation: Straight

Accessories: housing, screw, card line buckle

Connector material: Pure copper joint

Housing material: Gray Plastic

Opening size (cable port): 7mm/0.28″

Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.

Size: 41 mm×31 mm×16 mm/ 1.61″×1.22″×0.63″
